1. Purpose

1.1 Document Objective

HTL-00 adalah dokumen arsitektur tertinggi HortiLink per-site. Dokumen ini:

• Mengunci boundary sistem
• Mengunci kontrol hierarchy
• Mengunci topologi komunikasi
• Mengunci domain tanggung jawab Node, Gateway, dan Server
• Menjadi referensi seluruh dokumen HTL-01 s/d HTL-09

Tidak ada dokumen lain yang boleh bertentangan dengan HTL-00.

1.2 Architectural Authority

HTL-00 memiliki otoritas untuk:

• Menentukan siapa authority kontrol
• Menentukan dependensi eksternal
• Menentukan model degradasi
• Menentukan asumsi kapasitas
• Menentukan domain trust

Perubahan pada:

• Topologi jaringan
• Authority kontrol
• Deployment model
• Kapasitas baseline

wajib revisi HTL-00.

1.3 Governance & Change Control

Perubahan HTL-00 harus melalui:

1. Architecture review meeting
2. Impact analysis terhadap HTL-01 s/d HTL-09
3. Version increment MAJOR/MINOR sesuai dampak
4. Approval architect + backend lead

HTL-01 tidak boleh dibekukan sebelum HTL-00 final.

2. Scope

2.1 In-Scope Components (Baseline Per-Site)

Komponen wajib dalam satu site:

• 10–15 Node ESP (sensor & actuator)
• Relay-aware intra-site topology
• 1 Gateway ESP terpisah
• 1 Raspberry Pi sebagai Site Server
• HMI berbasis web (LAN)
• MQTT broker lokal
• Time-series database lokal
• OTA repository lokal
• Role-based access control lokal

Tidak ada dependency cloud dalam baseline.

2.2 Out-of-Scope (Fase Berikutnya)

• Multi-site aggregation
• Cloud synchronization
• AI analytics
• Enterprise IAM
• Remote internet monitoring

Cloud adalah fase ekspansi, bukan baseline.

2.3 Deployment Model

✔ 2.3.1 Single Site Baseline

Setiap site berdiri sendiri dan mampu beroperasi tanpa internet.

✔ 2.3.2 Multi-Site (Future Phase)

Site-site independen yang dapat disinkronisasi ke layer cloud.

Saat ini tidak termasuk dalam baseline HTL-00.

3. Definitions

3.1 Site

Unit fisik operasional (greenhouse/lahan) yang memiliki:

• Node cluster
• Gateway
• Raspberry Pi server
• LAN lokal

Site adalah domain otonom.

3.2 Node

Perangkat berbasis ESP yang:

• Membaca sensor
• Mengontrol aktuator
• Menjalankan kontrol lokal
• Mengirim telemetry
• Menerima command non-kritis

Node adalah authority kontrol kritikal.

3.3 Relay-Aware Node

Node yang mengetahui:

• Parent (sebelum)
• Child (sesudah)

Node tidak blind forward. Node memelihara routing metadata dan hop limit.

3.4 Gateway

ESP terpisah yang:

• Koordinator ESP-NOW
• Validasi routing
• Deduplication
• Bridge ke MQTT broker (Pi)
• Distribusi timestamp
• Store-and-forward terbatas

Gateway bukan control authority.

3.5 Site Server (Raspberry Pi)

Server lokal yang menyediakan:

• MQTT broker
• Time-series DB
• Dashboard
• Command manager
• Config registry
• OTA repository
• RBAC

Server adalah supervisory layer, bukan kontrol kritikal.

3.6 Control Plane

Aliran perintah dan konfigurasi dari Server → Gateway → Node.

3.7 Data Plane

Aliran telemetry dari Node → Gateway → Server.

3.8 Local-First Control

Prinsip bahwa:

Kontrol kritikal (pompa, valve, dosing) tidak bergantung pada gateway, server, atau internet.

4. Assumptions

4.1 Operational Assumptions

1. Site dapat mengalami:

   • Listrik tidak stabil
   • Gangguan jaringan LAN
   • Reboot perangkat

2. Internet tidak tersedia atau tidak stabil.

3. Operator onsite tersedia untuk commissioning.

4. Lingkungan outdoor dengan kelembaban tinggi.

4.2 Technical Assumptions

1. MQTT hanya berjalan di LAN site.
2. ESP-NOW digunakan intra-site.
3. HTTP digunakan untuk provisioning & diagnostics lokal.
4. Raspberry Pi wajib per-site.
5. Node maksimal 10–15 unit per-site.
6. Relay topology dengan hop limit terbatas.

4.3 Capacity Assumptions (Baseline)

• Node per-site: 10–15
• 1 Gateway per-site
• 1 Pi per-site
• Telemetry interval baseline akan dikunci di section teknis
• Broker dan DB berjalan pada resource Pi kelas menengah

Kapasitas ini adalah baseline desain, bukan batas absolut.

5. System Description

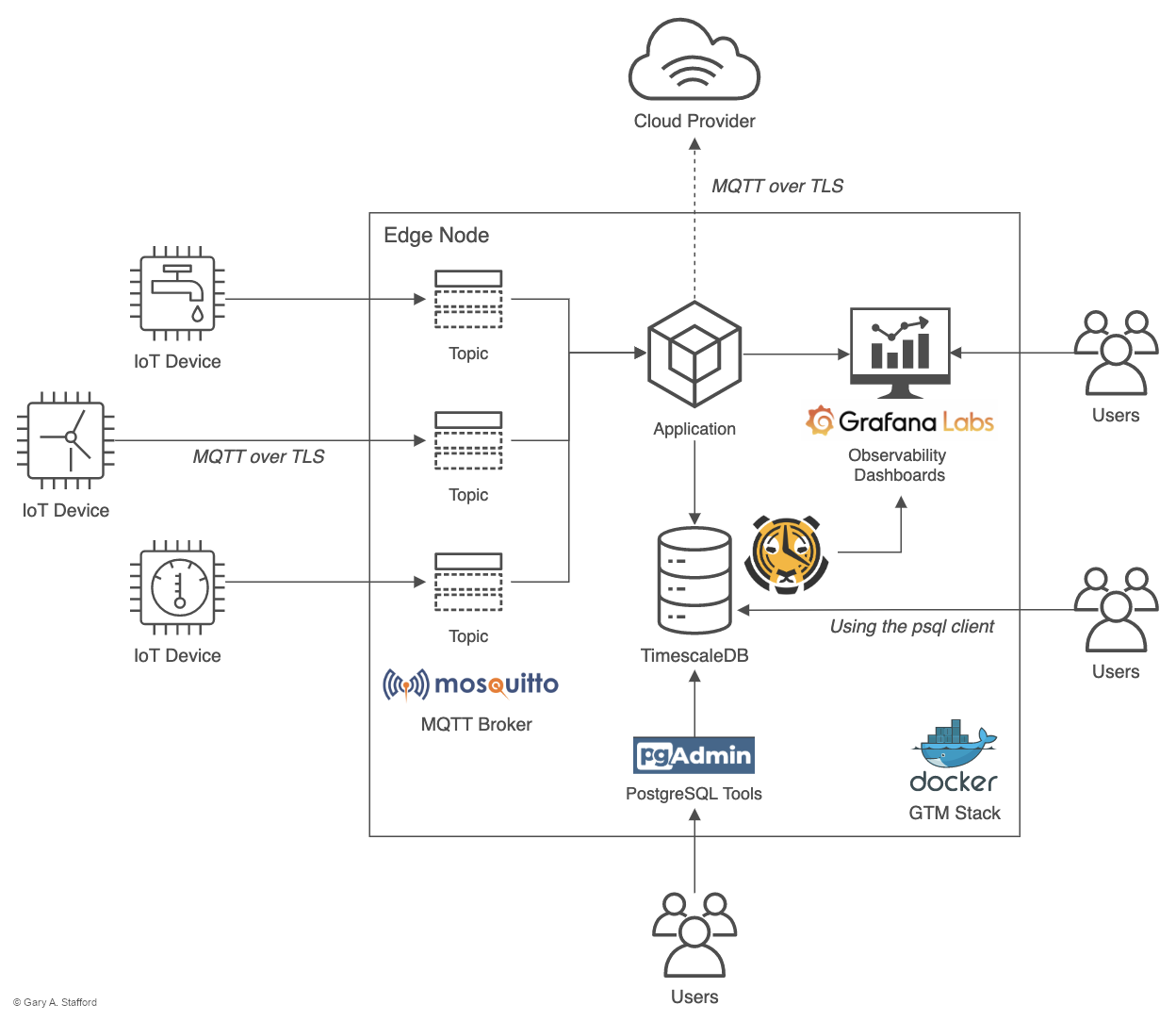

5.1 High-Level Architecture Overview

✔ Deskripsi Arsitektur Baseline Per-Site

Satu site HortiLink terdiri dari:

• 10–15 Node (ESP sensor + actuator)
• Relay-aware intra-site topology
• 1 Gateway ESP
• 1 Raspberry Pi (Site Server)
• HMI via LAN

✔ Alur Data (Data Plane)

Node → Relay (jika ada) → Gateway → MQTT Broker (Pi) → Time-Series Database → Dashboard

✔ Alur Kontrol (Control Plane)

Dashboard (Pi) → MQTT → Gateway → Node → ACK kembali ke Pi

Kontrol kritikal tetap berada di Node. Server hanya supervisory.

5.2 Site Boundary Architecture

Boundary Level

✔ Boundary 1 – Node Domain

• Sensor
• Actuator
• Local control engine
• Interlock

Jika Gateway & Server mati → Node tetap berjalan.

✔ Boundary 2 – Gateway Domain

• Routing
• Dedup
• Store-forward
• Time authority

Jika Server mati → Gateway buffer data.

✔ Boundary 3 – Server Domain

• MQTT broker
• DB
• Dashboard
• OTA

Jika Server mati → kontrol tetap di Node.

5.3 Control Hierarchy Model

Kontrol dibagi menjadi 4 level:

✔ Level 0 – Hardware Interlock

• Relay wiring logic
• Max runtime limit
• Physical protection

Tidak bisa di-bypass software.

✔ Level 1 – Node Local Automation

• Threshold control
• Schedule fallback
• Safety validation

Authority utama kontrol.

✔ Level 2 – Gateway Supervisory

• Routing enforcement
• Rate limiting
• Time distribution

Tidak boleh override interlock.

✔ Level 3 – Server Supervisory

• Setpoint change
• Config update
• Monitoring

Tidak boleh menjadi hard dependency.

5.4 Communication Topology

✔ Intra-Site

• ESP-NOW
• Relay-aware star with limited hop
• Hop limit wajib
• Dedup wajib

✔ Gateway to Server

• MQTT over LAN
• QoS defined in HTL-01
• Persistent session

✔ HMI Access

Mode A: Smartphone → Node HTTP (local AP/LAN)

Mode B: Smartphone → Pi Web → MQTT → Node

5.5 Data Flow Description

✔ Telemetry Flow

1. Sensor read
2. Local validation
3. Sequence increment
4. Relay metadata attach
5. Gateway validation
6. MQTT publish
7. DB ingestion

✔ Command Flow

1. User issue command
2. Server publish with TTL
3. Gateway validate
4. Node validate interlock
5. Execute
6. ACK return
7. Dashboard update

5.6 Degradation Mode Overview

Internet tidak mempengaruhi baseline operasi.

6. Technical Specification

Section ini mengunci keputusan teknis inti arsitektur per-site dan menjadi referensi langsung bagi HTL-01 s/d HTL-09.

6.1 Node Architectural Role

Node adalah control authority utama dalam sistem.

✔ Tanggung Jawab Node

• Sensor acquisition
• Local filtering & validation
• Threshold/schedule control
• Safety interlock enforcement
• Actuator driving
• Telemetry generation
• Command validation (TTL, idempotency)
• Local buffering (minimum)
• Watchdog & brownout handling

✔ Prinsip Utama

Node harus tetap:

• Aman
• Stabil
• Deterministik

Walaupun:

• Gateway mati
• Server mati
• LAN mati
• Internet tidak ada

Node tidak boleh:

• Bergantung pada server untuk keputusan pompa/valve
• Menunggu ACK server untuk eksekusi kontrol lokal

6.2 Relay-Aware Topology Model

✔ Karakteristik

• Max 10–15 node
• Hop terbatas (dikunci di HTL-01)
• Node mengetahui parent & child
• Tidak full mesh dinamis
• Tidak dynamic route discovery kompleks

✔ Aturan Wajib

1. Hop limit enforcement
2. Sequence-based deduplication
3. Routing table statis/semi-statis
4. Loop prevention
5. Relay tidak boleh memodifikasi payload kontrol

✔ Dampak Failure

Jika parent mati:

• Node masuk fallback mode
• Attempt rebind ke gateway jika dalam jangkauan
• Tidak menghentikan kontrol lokal

6.3 Gateway Architectural Role

Gateway adalah bridge + policy enforcement layer.

✔ Tanggung Jawab Gateway

• ESP-NOW coordinator
• Relay metadata validation
• Dedup engine
• Store-and-forward (ringan)
• MQTT publish
• Command dispatch
• Time authority distribution
• Rate limiting

Gateway tidak memiliki authority kontrol aktuator.

6.4 Raspberry Pi Architectural Role

Pi adalah supervisory & observability layer lokal.

✔ Tanggung Jawab Pi

• MQTT broker
• Data ingestion
• Time-series database
• Command management
• Config registry
• OTA repository
• RBAC
• Health monitoring
• Backup

Jika Pi mati:

• Kontrol tetap berjalan
• Data sementara tidak tercatat

6.5 Time Authority Model

✔ Hierarki Waktu

1. Raspberry Pi (jika NTP tersedia)
2. Gateway (distributor waktu)
3. Node (sinkronisasi ringan)

✔ Fallback

Jika Pi tidak tersedia:

• Gateway menjadi authority lokal Jika gateway tidak tersedia:
• Node menggunakan monotonic counter + uptime

Timestamp server tidak boleh menjadi hard dependency kontrol.

6.6 Store-and-Forward Strategy

✔ Node Buffer

• Kapasitas minimal (beberapa siklus telemetry)
• Digunakan saat relay sementara putus
• Flush saat koneksi kembali

✔ Gateway Buffer

• Buffer utama sebelum MQTT publish
• Wajib mencegah kehilangan data saat broker down
• Policy drop jika buffer penuh (ditentukan di HTL-03)

✔ Server Storage

• Storage permanen
• Retention policy ditentukan di HTL-04

6.7 Configuration Management Model

✔ Konsep

• Versioned configuration per-site
• Per-node config binding
• Immutable config snapshot
• Rollback capability

✔ Alur

1. Config dibuat di Server
2. Publish via MQTT
3. Gateway forward
4. Node validate checksum
5. Apply & ACK
6. Server update status

Node tidak boleh apply config tanpa validasi integrity.

6.8 Observability Architecture

✔ Layer Monitoring

✔ Node Level

• Uptime
• Reset counter
• Supply voltage
• RSSI
• Buffer depth

✔ Gateway Level

• Free heap
• Queue depth
• MQTT state
• Reconnect counter

✔ Server Level

• Broker connection count
• DB write rate
• Disk usage
• CPU load

Observability wajib lokal (tanpa cloud).

6.9 Command Authority Model

Authority priority:

1. Hardware interlock
2. Node local rule
3. Manual override (role-restricted)
4. Server command

Server tidak boleh override interlock.

6.10 Resource Baseline

✔ Node

• ESP32 baseline
• RAM cukup untuk routing + buffer
• Flash untuk OTA dual partition

✔ Gateway

• ESP32 recommended
• Flash cukup untuk buffer

✔ Server

• Raspberry Pi 4 baseline
• RAM ≥ 4GB recommended
• Storage ≥ 32GB

7. Constraints

Arsitektur HortiLink dirancang dalam batasan nyata berikut.

7.1 Hardware Constraints

✔ Node (ESP32 baseline)

• RAM terbatas (ratusan KB efektif)
• Flash write cycle terbatas
• Tidak cocok untuk heavy JSON parsing besar
• Relay rating harus mengikuti load nyata

✔ Gateway

• RAM terbatas untuk buffering
• Flash terbatas untuk store-forward
• Tidak cocok untuk analytics berat

✔ Raspberry Pi

• CPU terbatas (bukan server enterprise)
• Disk I/O terbatas (SD card wear risk)
• Tidak cocok untuk high-frequency telemetry burst

7.2 Network Constraints

✔ ESP-NOW

• Airtime terbatas
• Collision risk meningkat >15 node
• Tidak ada delivery guarantee bawaan
• Perlu dedup & retry policy

✔ MQTT (LAN)

• Broker connection limit
• Message size limit
• QoS trade-off latency vs reliability

7.3 Power Constraints

• Brownout kemungkinan tinggi
• Surge petir outdoor
• Inrush current pompa 5–7x nominal
• EMI dari motor

7.4 Scaling Constraints

Baseline:

• 10–15 node per-site
• 1 gateway
• 1 Pi

Jika >15 node:

• Perlu evaluasi ulang topology
• Mungkin perlu gateway tambahan
• MQTT throughput harus diuji ulang

8. Failure Handling

HTL-08 akan memuat matrix detail. Di HTL-00 hanya mengunci containment model.

8.1 Containment Principle

Failure harus:

• Terlokalisasi
• Tidak menjalar lintas domain
• Tidak menghentikan kontrol kritikal

8.2 Failure Domain Summary

✔ Node Failure

• Kontrol node lain tidak terpengaruh

✔ Relay Chain Break

• Node terdampak masuk fallback mode
• Node lain tetap berjalan

✔ Gateway Failure

• Semua node tetap autonomous

✔ Server Failure

• Monitoring & logging berhenti
• Kontrol tetap berjalan

✔ LAN Failure

• Node tetap berjalan
• Gateway buffer

✔ Internet Failure

• Tidak berdampak baseline

8.3 Degradation Modes

Kontrol kritikal selalu berada di Node.

9. Interfaces (High-Level Overview)

Detail ada di HTL-01.

9.1 Data Plane

Node → Gateway → MQTT → Server → DB

Karakteristik:

• Upstream dominan
• Periodic telemetry
• Sequence-based

9.2 Control Plane

Server → MQTT → Gateway → Node → ACK

Karakteristik:

• TTL enforced
• Idempotent
• Interlock validated

9.3 Provisioning Interface

• HTTP local
• Device registration
• Credential binding
• Site ID assignment

9.4 OTA Interface

• Metadata via MQTT
• Firmware fetch via HTTP lokal
• Signature verification
• Rollback supported

9.5 Diagnostic Interface

• Node health endpoint
• Gateway diagnostic page
• Server monitoring dashboard

10. Open Issues

Keputusan berikut harus dikunci sebelum HTL-01 final:

1. Telemetry interval baseline final
2. Payload format final (JSON vs CBOR)
3. Hop limit final
4. Buffer size minimum gateway
5. UPS mandatory untuk Pi?
6. DB engine final
7. Relay rebind strategy

Dokumen HTL-01 tidak boleh dibekukan sebelum isu ini diselesaikan.

11. Revision History
